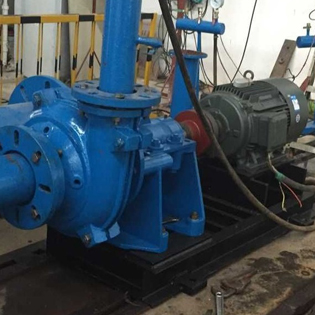

Pump Model: SL/100D (100D-L)
SL/100D is equivalent to 100D-L, a 4” discharge slurry pump designed for light duty sludge applications. It’s wet-end spare parts are also made of high chrome alloy A05, a kind of highly abrasion and erosion resistant white iron, similar to ASTM A532. Alloy A05 is a wear resistant white iron that offers excellent performance under erosive conditions. The alloy can be effectively used in a wide range of slurry types. Alloy A05 is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required.
Material Construction:
| Part Description | Standard | Alternative |
| Impeller | A05 | A33, A49 |
| Volute Liner | A05 | A33, A49 |
| Front Liner | A05 | A33, A49 |
| Back Liner | A05 | A33, A49 |
| Split Outter Casings | Grey Iron | Ductile Iron |
| Shaft | Carbon Steel | SS304, SS316 |
| Shaft Sleeve | SS304 | SS316, Ceramic, Tungstan Carbide |
| Shaft Seal | Expeller Seal | Gland Packing, Mechanical Seal |
| Bearings | ZWZ, HRB | SKF, Timken, NSK etc. |
Applications:
Mining and Mineral Processing; SAG and AG Mill Discharge Recirculation Duties; Cyclone Feed; Mine Refuse and Tailings;
Industrial Processing; Coal and Power Plant Ash; Sand and Gravel; Mining Duty Abrasive Slurries etc.
Specifications:
|
Pump |
Outlet |
Allowable |
Clear Water Performance |
|||||
|
Capacity Q |
Head |
Speed |
Max.Eff. |
NPSH |
||||
|
m3/h |
l/s |
|||||||
|
SL/20A |
20 |
7.5 |
2.34-10.8 |
0.65-3 |
6-37 |
1400-3000 |
30 |
|
|
SL/50B |
50 |
15 |
16.2-76 |
4.5-20 |
9-44 |
1400-2800 |
55 |
|
|
SL/75C |
75 |
30 |
18-151 |
5-42 |
4-45 |
900-2400 |
57 |
|
|
SL/100D |
100 |
60 |
500-252 |
14-70 |
7-46 |
800-180 |
60 |
2-3.6 |
|
SL/150E |
150 |
120 |
1115-486 |
32-135 |
12-51.5 |
800-1500 |
65 |
2-6 |
|
SM/200E |
200 |
120 |
666-1440 |
185-400 |
14-60 |
600-1100 |
73 |
4-10 |
|
SM/200F |
200 |
260 |
666-1440 |
185-400 |
14-60 |
600-1100 |
73 |
4-10 |
|
SL/250E |
250 |
120 |
396-1425 |
110-396 |
8-30 |
500-800 |
77 |
2-10 |
|
SL/300S |
300 |
560 |
468-2538 |
130-705 |
8-60 |
400-950 |
79 |
2-10 |
|
SL/350S |
350 |
560 |
650-2800 |
180-780 |
10-59 |
400-840 |
81 |
3-10 |
|
SL/400ST |
400 |
560 |
720-3312 |
200-920 |
7-51 |
300-700 |
80 |
2-10 |
|
SL/450ST |
450 |
560 |
1008-4356 |
280-1210 |
9-48 |
300-600 |
80 |
2-9 |
|
SL/550TU |
550 |
1200 |
1980-7920 |
560-2200 |
10-50 |
250-475 |
86 |
4-10 |
