Name: Heavy Duty Sand Gravel Pump SG/200F
Availability: InStock
Rating: 4.5 (89 reviews)

Heavy Duty Sand Gravel Pump SG/200F

Short Description:

Brand: CNSME
Model Number: 100PE-PCH Single Shell Slurry Pump
Model Number: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 30 Sets per Month
Packaging Details: Plywood Crate
:
:
Sand Pumps : River Dredging Pumps

PDF Download

Contact Now

Product Details

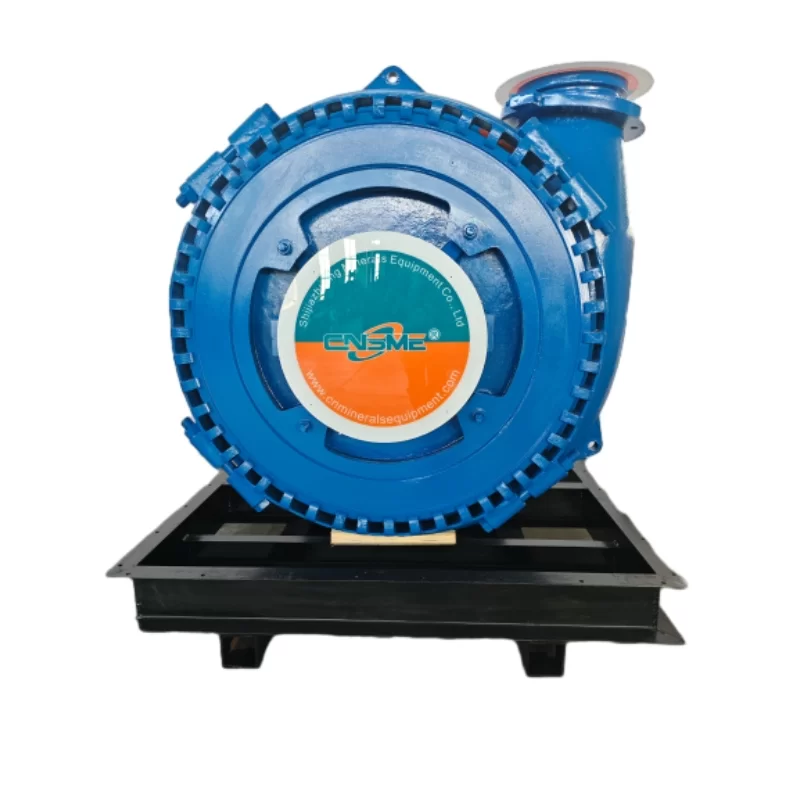

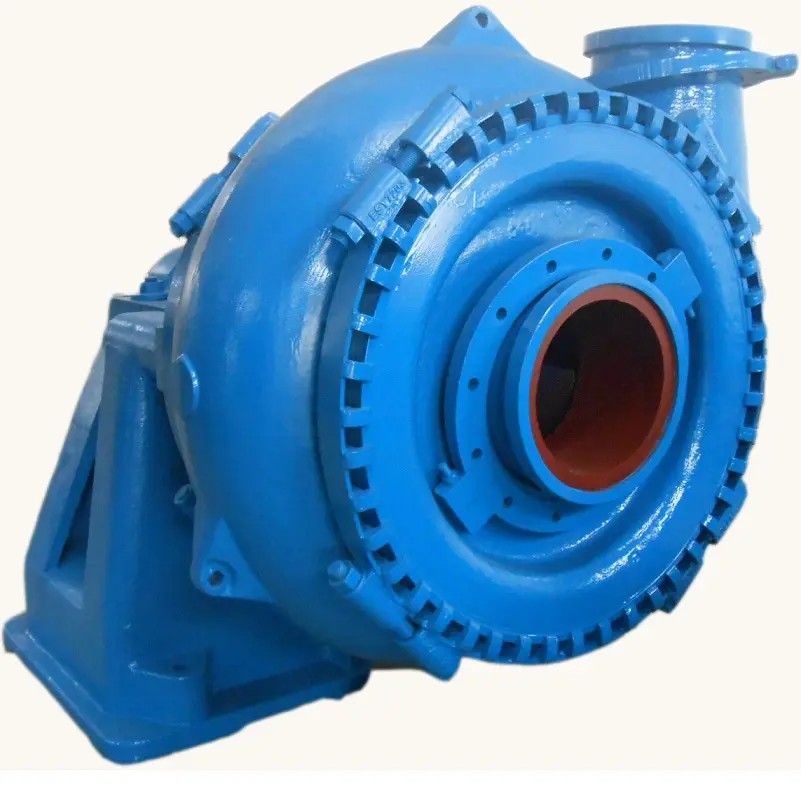

Pump Model: SG/200F (10/8F-G)

The SG range of dredge and gravel pumps is designed to provide continuous pumping of highly abrasive slurries containing large particles at high maintained efficiencies with low maintenance and ownership costs.

The impeller fitted to our SG heavy duty gravel pumps is the closed type with three vanes, which allow the impeller to pass large rocks. The heavy-duty dredge pump is specifically designed for low head duties such as hopper dredging and barge loading.

Material Construction:

Description	Standard Material	Optional Material

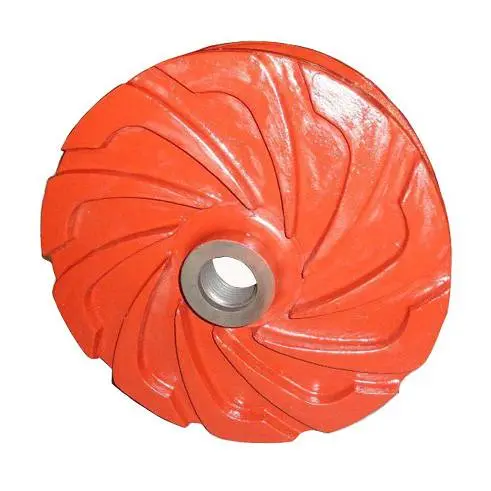

Impeller	A05
Door	A05
Bowl	A05
Front Cover	A05
Back Liner	A05
Shaft	Carbon Steel	SUS304, SUS316(L)
Shaft Sleeve	3Cr13	SUS304, SUS316(L)
Shaft Seal	Gland Packing Seal	Expeller Seal, Mechanical Seal

Applications:

Sand and Gravel; Hydraulic Mining; Sugar Beet & Other Root Vegetables; Slag Granulation; Tunnelling.

Specifications:

Pump Model	S×D (inch)	Allowable Max. Power (kw)	Clear Water Performance					Impeller
			Capacity Q	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
			m³/h	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
SG/100D	6×4	60	36-250	5-52	600-1400	58	2.5-3.5	3	378
SG/150E	8×6	120	126-576	6-45	800-1400	60	3-4.5		391
SG/200F	10×8	260	216-936	8-52	500-1000	65	3-7.5		533
SG/250G	12×10	600	360-1440	10-60	400-850	65	1.5-4.5		667
SG/300G	14×12	600	432-3168	10-64	300-700	68	2-8		864
SG/400T	18×16	1200	720-3600	10-50	250-500	72	3-6		1067

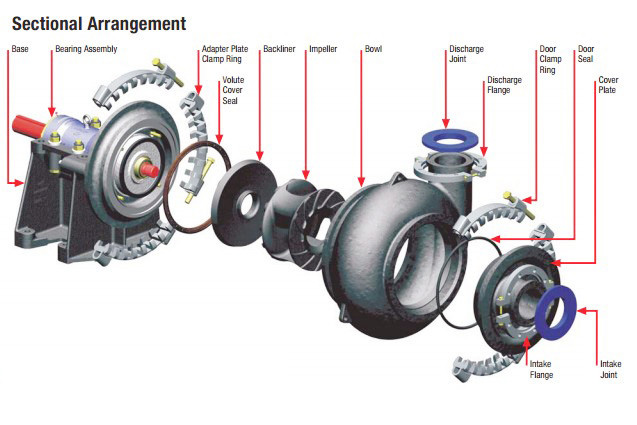

Structure:

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

*Name

*Phone

*Email

*Message

Related News

Oct 31,25

Material Options of Slurry Pump Wet-end Parts

The slurry pump is a pump that conveys a mixture of solids and water. Therefore, the medium will be abrasive to the flowing parts of the slurry pump. Therefore,

Oct 31,25

CNSME Pump Kicks Off the New Year with New Beginnings

Oct 31,25

Factors Affecting Slurry Pump Selection — Solid Particles

Slurry pumps typically handle slurries in plant applications ranging from processing to wastewater treatment.

Oct 31,25

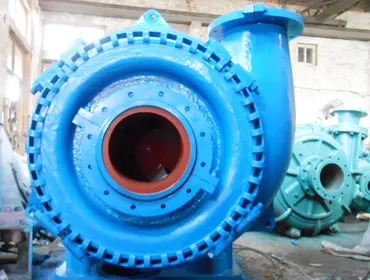

What are the common accessories and performance characteristics of sand gravel pump

The main part of the sand gravel pump accessories is also called the overflow part. Including pump cover, impeller, volute, front guard, rear guard, etc.

Oct 31,25

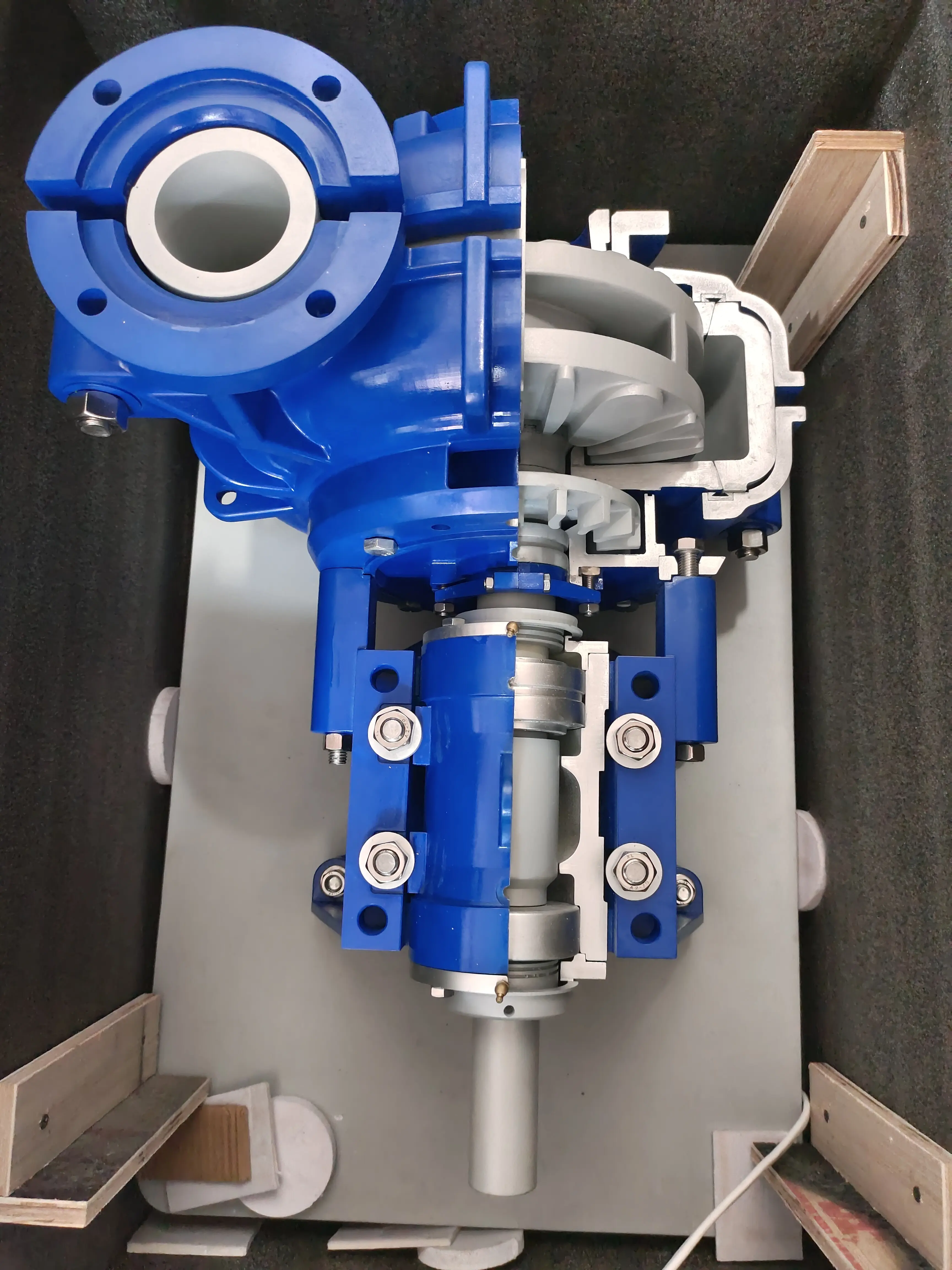

A slurry pump model brought to the exhibition
