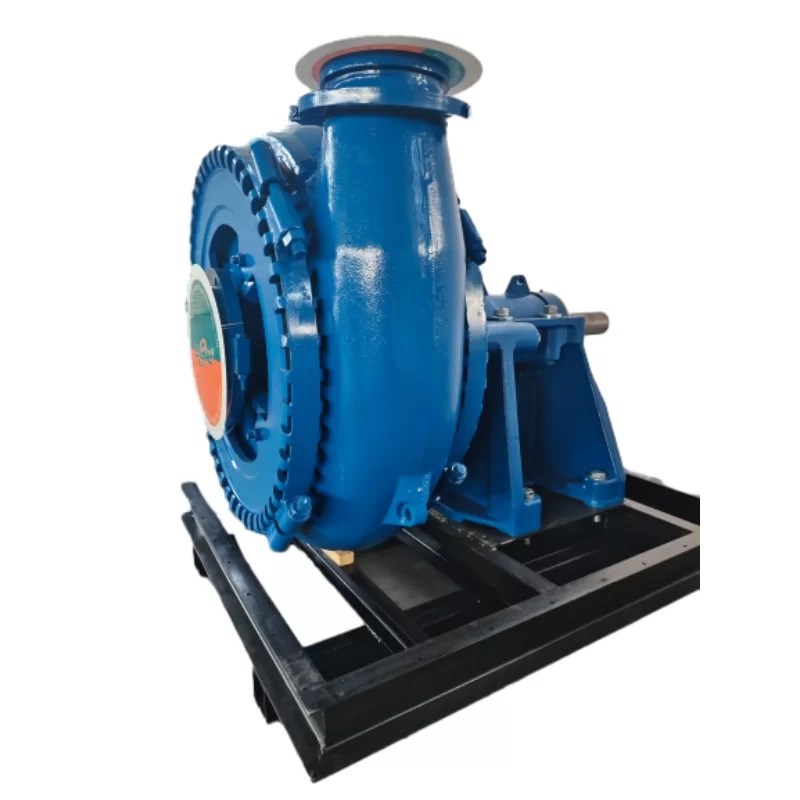

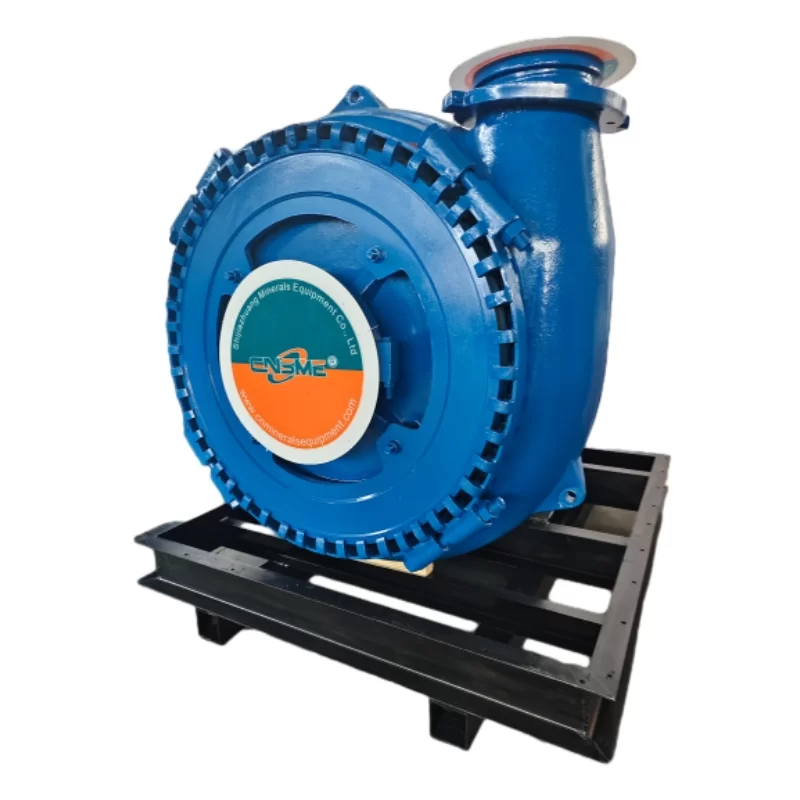

10/8F-GSand Gravel Dredging Pumps

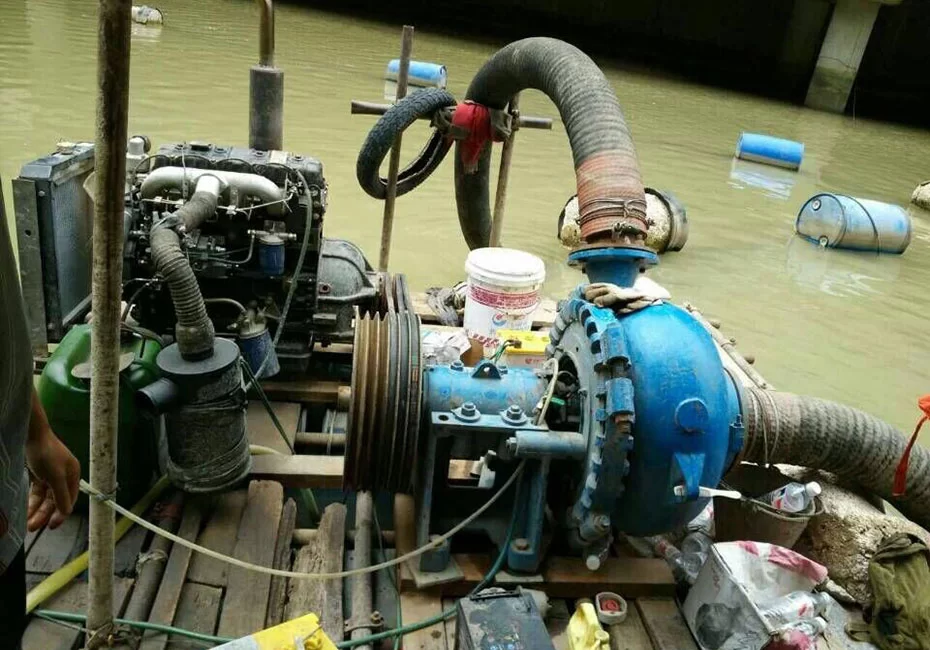

Type G(or GH)gravel pumps are designed for continously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in Mining, Explosive sludge in metal melting, Dredging in dredger and course of rivers, and other fields. Type GH pumps are of high-head ones.

PDF Download

Contact Now

Product Details

Design Features

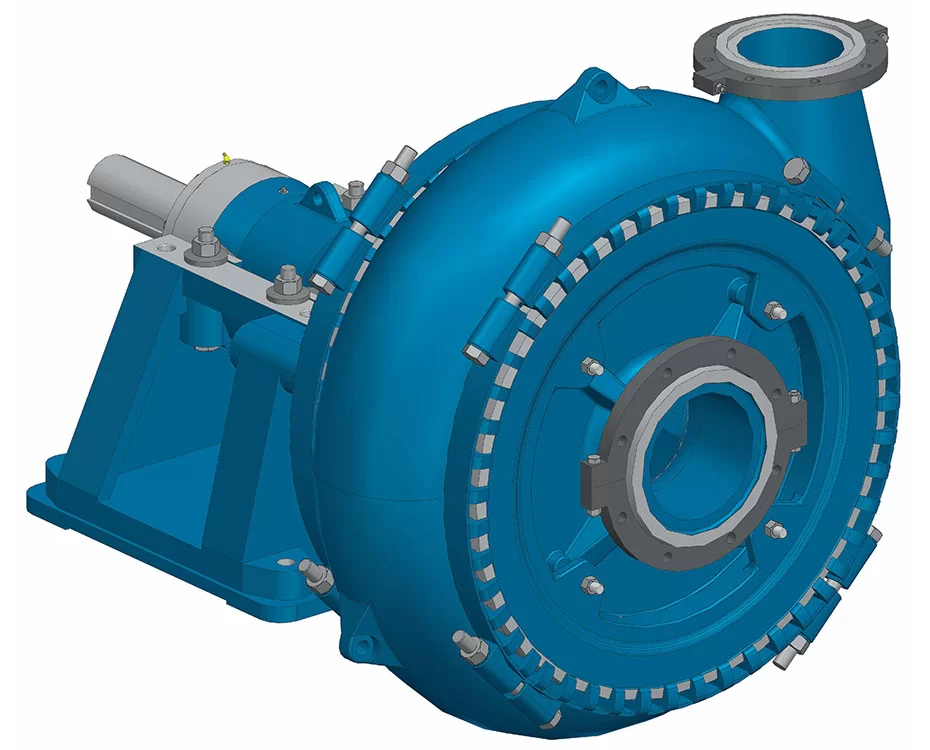

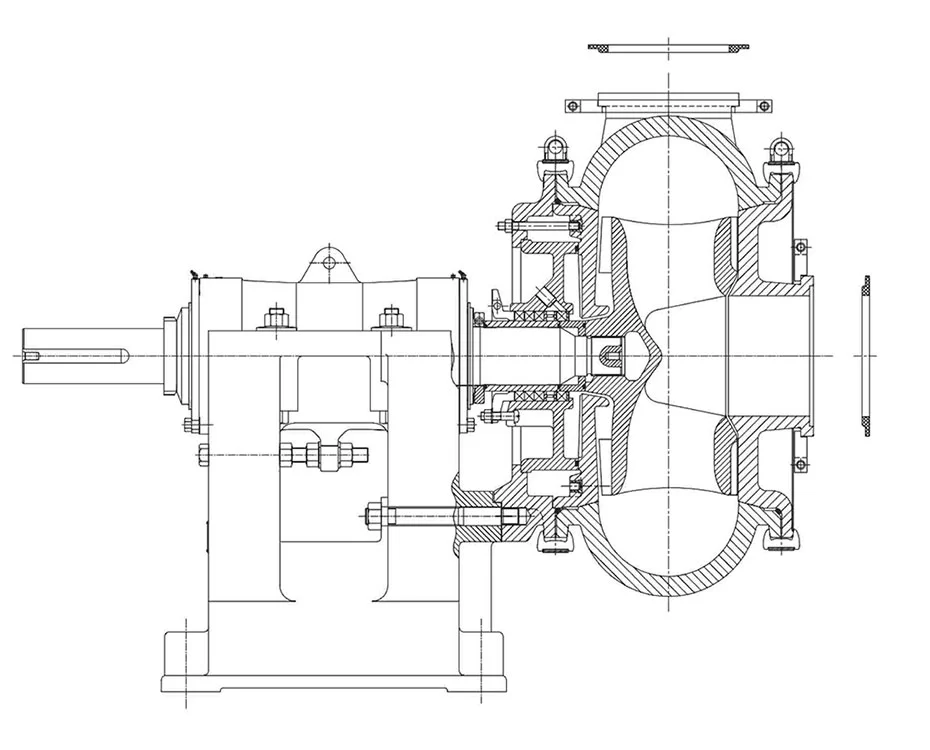

The G/GH series gravel pumps are all centrifugal pumps with horizontal and single pump casing structure, of which the GH type is a high-head gravel pumps.

The G/GH series gravel pumps adopt a single casing connected by means of clamp bands and wide wet-passage. The wet-end parts are made of Ni_hard and high chromium abrasion-resistance alloys.

The discharge direction of pump can be oriented in any direction of 360°. This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion-resistance.

The main types of pump shaft seals are packing seals, expeller seals and mechanical seals.

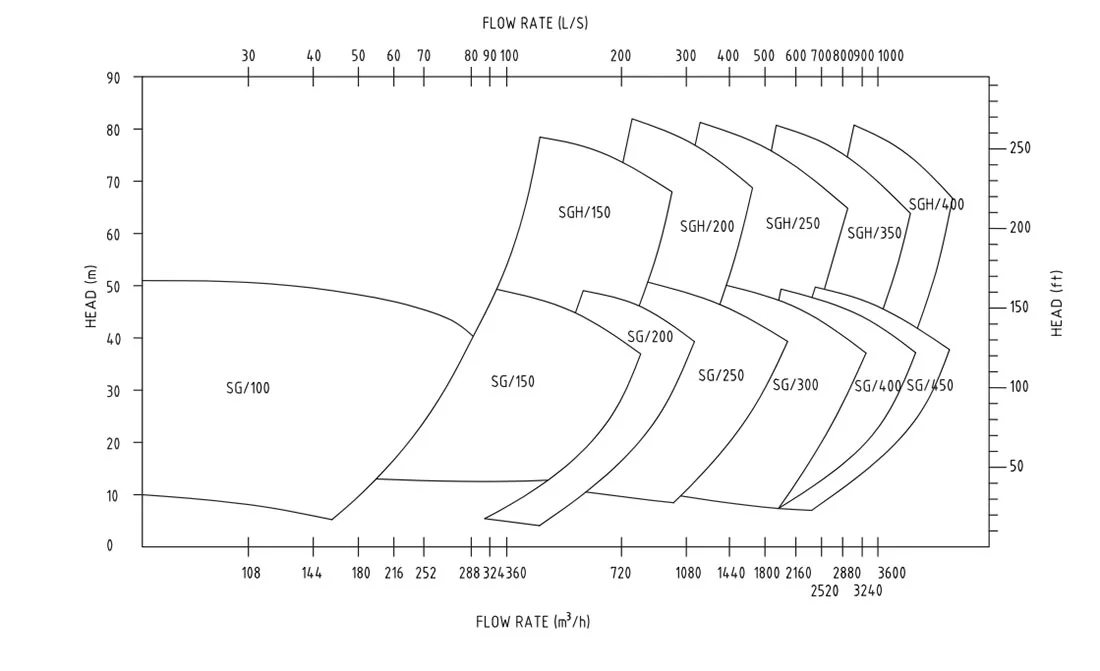

Pump Model	Allowable Max. Power(kw)	Clear Water Performance					Impeller
		Capacity Q	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
		m3/h	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
6/4D-G	60	36-250	5-52	600-1400	58	2.5-3.5	3	378
8/6E-G	120	126-576	6-45	800-1400	60	3-4.5		391
10/8F-G	260	216-936	8-52	500-1000	65	3-7.5		533
12/10G-G	600	360-1440	10-60	400-850	65	1.5-4.5		667
14/12G-G	600	432-3168	10-64	300-700	68	2-8		864
18/16T-G	1200	720-3600	10-50	250-500	72	3-6		1067

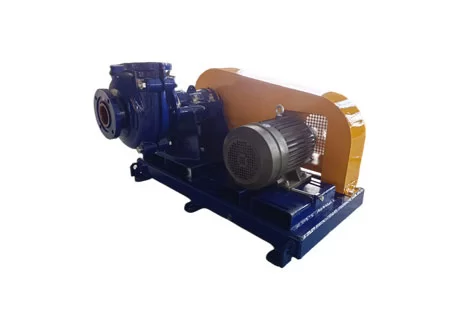

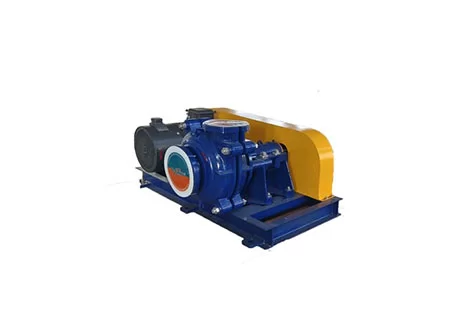

CRZ/CLZ
CRZ/CLZ

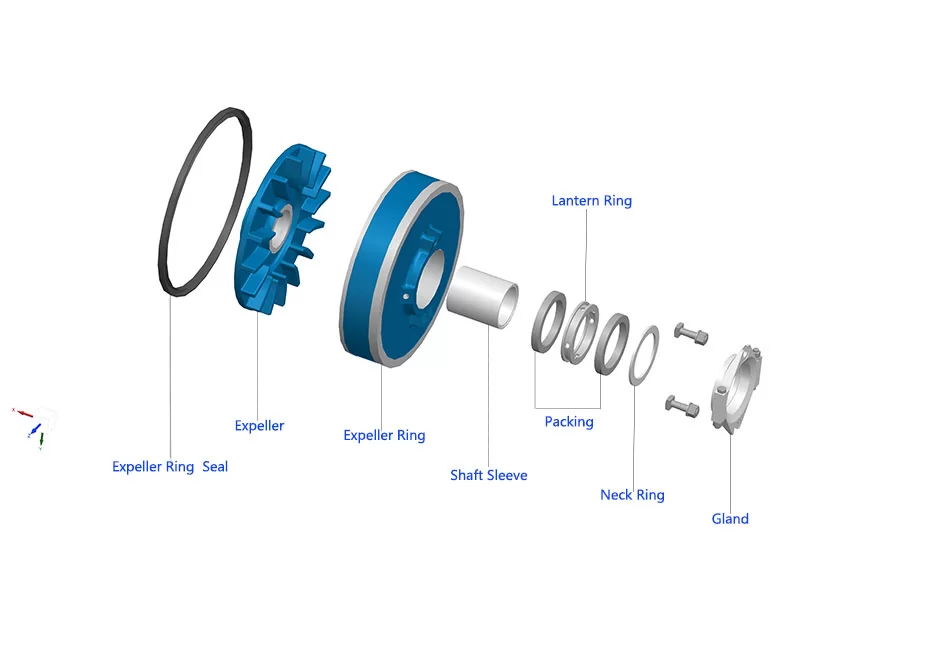

EXPELELR-SEAL

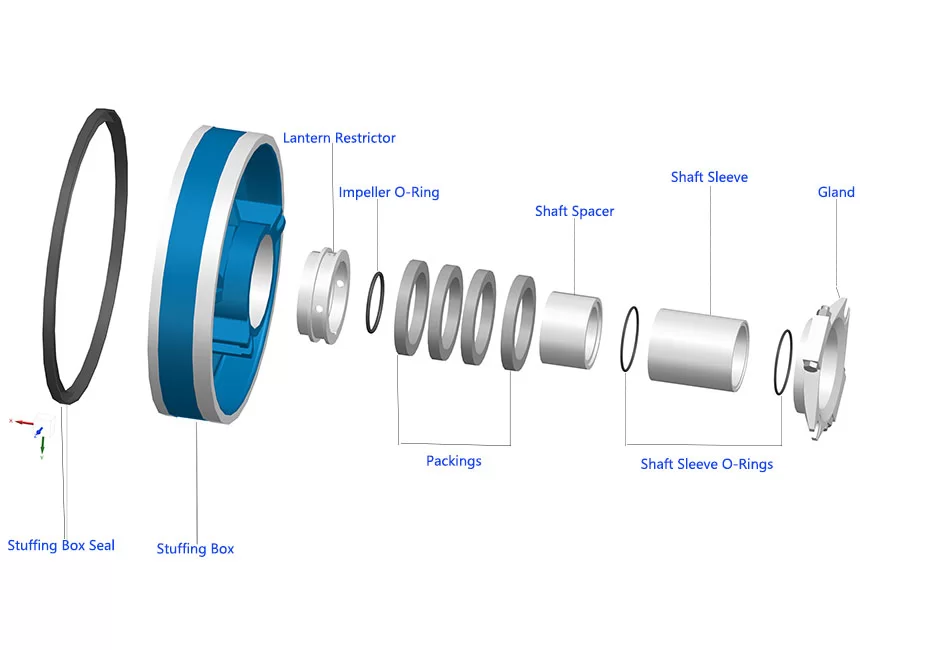

GLAND-SEAL
